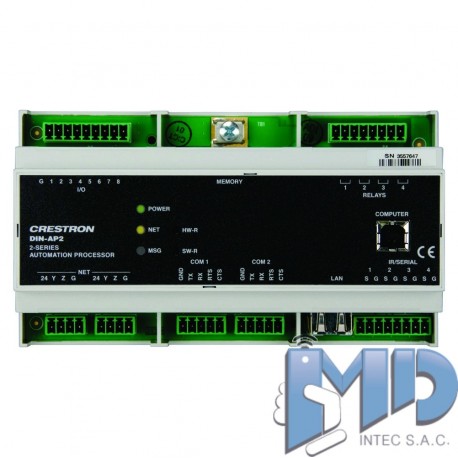

PROCESADOR CRESTRON DIN-AP2

Processor
  CPU 32-bit Freescale ColdFire® Microprocessor
Memory
  SDRAM 32 MB
  NVRAM 256 KB
  Flash 8 MB
  Memory Card  expandable up to 2 GB using MMC compatible card (not included)
Operating System
  Real-time, preemptive multi-threaded/multitasking kernel; FAT32 file system with long names; supports SIMPL™ Windows® and SIMPL+®
Ethernet
  10/100BaseT, auto-negotiating, full/half duplex, static IP or DHCP/DNS, SSL, TCP/IP, UDP/IP, CIP, SMTP, SNMP, built-in Web server and e-mail client; supports Crestron e-Control®2 XPanel and RoomView™ applications
Connectors
  I/O 1 – 8 (1) 9-pin 3.5mm detachable terminal block comprising (8) digital input/output or analog input ports (referenced to GND);
 Digital Input: Rated for 0-24 Volts DC, input impedance 20k ohms, logic threshold 1.25 Volts DC;
 Digital Output: 250 mA sink from maximum 24 Volts DC, catch diodes for use with “real world” loads;
 Analog Input: Rated for 0-10 Volts DC, protected to 24 Volts DC maximum, input impedance 20k ohms;
 Programmable 5 Volts, 2k ohms pull-up resistor per pin
  RELAYS 1 – 4 (1) 8-pin 3.5mm detachable terminal block comprising (4) normally open, isolated relays;
 Rated 1 Amp, 30 Volts AC/DC;
 MOV arc suppression across contacts
  COMPUTER (1) USB Type B female, USB 1.1 computer console port
  NET (2) 4-pin 3.5mm detachable terminal blocks, paralleled;
 Cresnet port and 24 Volt DC power input
 Master/Slave selectable
  COM 1 – 2 (2) 5-pin 3.5mm detachable terminal blocks
 Bidirectional RS-232 ports;
 Up to 115.2k baud; hardware and software handshaking support
  LAN (1) 8-wire RJ45 with 2 LED indicators;
 10/100BaseT Ethernet port;
 Green LED indicates link status;
 Yellow LED indicates Ethernet activity
  IR/SERIAL 1 – 4 (1) 8-pin 3.5mm detachable terminal block comprising (4) IR/Serial output ports;
 IR output up to 1.2 MHz;
 1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud;
 Individual signal generator per port, allowing simultaneous firing of all ports
  MEMORY (1) MMC compatible card slot;
 Accepts Multimedia Memory Card (MMC) up to 2 GB
Reset Buttons
  HW-R (1) Recessed miniature pushbutton for hardware reset (reboots the processor)
  SW-R (1) Recessed miniature pushbutton for software reset (restarts the SIMPL program)
LED Indicators
  POWER (1 green) Indicates power supplied to unit via either NET port
  NET (1 yellow) Indicates Cresnet bus activity
  MSG (1 red) Indicates processor has generated an error message
Power Requirements
  Cresnet Power Usage 8 Watts (0.33 Amps @ 24 Volts DC)
Environmental
  Temperature 32° to 104 °F (0° to 40 °C)
  Humidity 10% to 90% RH (non-condensing)
  Heat Dissipation 26 BTU/Hr
Enclosure
  Light gray polycarbonate housing with polycarbonate label overlay, UL94 V-0 rated, 35mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45mm front panel cutout, occupies 9 DIN module spaces (162mm)
Dimensions
  Height 3.71 in (9.42 cm)
  Width 6.26 in (15.90 cm)
  Depth 2.28 in (5.80 cm)
Weight
  9.8 oz (277 g)
